Información Básica.
No. de Modelo.
SYPDV-2A06
Actuador
Neumático
Conexión
Válvula de diafragma Clamp
Material
Acero Inoxidable
Estructura
Válvula de Diafragma Recta
Presión
Presión ordinaria
Dirección Del Flujo
Bidireccional
Función
Tipo Inteligente, Sistemas de Control Distribuido
Uso
Control de Flujo
Estándar
DIN, GB
Reino Unido, ANSI, JIS, 3a/iso/asme bpe
Reino Unido, ANSI, JIS, 3a/iso/asme bpe
material de sellado
revestimiento de epdm+ptfe (estándar)
asistencia personalizada
oem, odm
estructura corporal
dos vías /tres vías/ t tipo /l tipo
tipo de cuerpo
fundición de inversión / forjada / cuerpo de bloque
Paquete de Transporte
bolsa de burbujas + cartón + bolsa de nylon
Especificación
1/4′′-6′′
Marca Comercial
sanying
Origen
Made in China
Código del HS
8481804090
Capacidad de Producción
5000 juego / semana
Descripción de Producto
Focus On Sanitary Solution of Diaphragm Valve
Sanitary Pneumatic Diaphragm Valve
Sanying diaphragm valve has a unique patented design which leads to minimize dead corner to prevent waste entrapment and contamination from bacteria or microorganisms.
Euro and Japan Imported seals,meet FDA standard
Internal treatment : 0.2~0.4 μm
Euro and Japan Imported seals,meet FDA standard
Internal treatment : 0.2~0.4 μm
Body Supply : Investment Casting / PTFE Coated / Forged / Block Body
Body Connection : Welded / Clamped / Threaded / Flange
| Size | 1/4"-6"( DN6-DN150),or customized |
| Body Material | SS 316L / 304 (CF8M /CF8 ) or others |

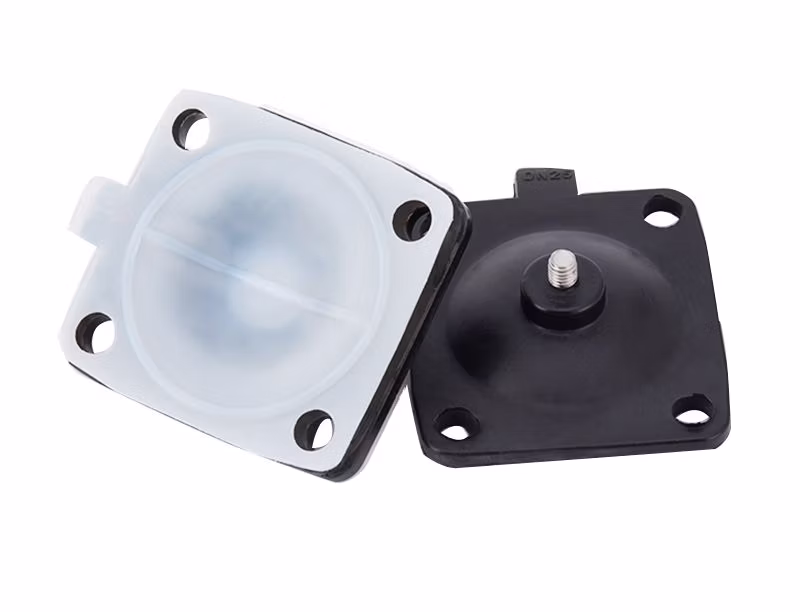

| Seal Material | EPDM+PTFE(Standrad) / EPDM /Silicon/FPM |
| Actuator Material | Plastic / Stainless Steel |
| Max Pressure | 10Bar ( 145psi / 1 Mpa) |
| Temperature | -20 ° C ~ 150 ° C (Depending On Diaphragm ) |
| Operation | Pneumatic /Manual (Optional) |
| Available Standard | ASME BPE /3A /DIN /ISO /IDF,SMS etc. |
| Certification | 3A-54-02/1580, PED97/23 EC, FDA177.2600 |
| Application Scope | pharmaceutical ,food, beverage, dairy, water processing, wine, fine chemicals industries etc. |
Clamp Connection ( example for ASME BPE Clamp For ASME BPE tube size)
Remark : All size can be customized
1.Product Advantage
Euro and Japan Imported seals,meet FDA standard
Internal treatment : 0.2~0.4 μm
2. Comapny Advantage
A. Sanying manufacture valves with more than 1 million pcs ,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.
B. Forged / Cast bodies with one time CNC machining, guarantee machining precision.
Zhejiang Sanying Fluid Equipment Co., Ltd.
We are a leading manufacturing and trading combo for sanitary valves,pipe and tank fittings more than decades years. we offer comprehensive
stainless steel manufacturing solutions for pharmaceutical,food,beverage,dairy ,winery,beer,water treatment,fine chemical and other industries.
The company adheres to the principle of strict quality control. The products have passed the FDA certification and have implemented the ISO9001:2008 quality certification. The quality of our products meets the stringent requirements of GMP and CE inspection.
stainless steel manufacturing solutions for pharmaceutical,food,beverage,dairy ,winery,beer,water treatment,fine chemical and other industries.
The company adheres to the principle of strict quality control. The products have passed the FDA certification and have implemented the ISO9001:2008 quality certification. The quality of our products meets the stringent requirements of GMP and CE inspection.
We are not only a manufacturer but also a great team that provids world-class technology solutions to global customers from technical
advice to choose the right products to the design and manufacture of custom products .
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to
you within your first order.
B) Lead time?
Within 1 week for existing product .
Within 1 week for existing product .
C) Are you a factory or trading company?
We are a factory
We are a factory
D) Can you do OEM for me?
We accept all OEM orders, just contact us and give me your design.we will offer you a reasonable price and make samples
for you ASAP.
We accept all OEM orders, just contact us and give me your design.we will offer you a reasonable price and make samples
for you ASAP.
